1. Features:
1. Used in ordinary environment, it can ensure that the internal level of the oven reaches Class 100
2. All-round argon soldering, high-temperature silicone breaking, SUS304# stainless steel electric heating producer, to prevent fine dust generated by the machine itself;
3. Imported SUS304# Japanese 800 2mm thick mirror stainless steel plate, and cleaned by alkaline soda to remove oil stains
PARTICLE is produced when no baking is required;
4. After the plane level is supplied from the back to the front, the air is supplied to the front door (special air duct design) through the H.E.P.A Filter 20″×20″ device imported from the United States, with a filtration efficiency of 99.99%, Class 100, exhaust port: 3″φ (with automatic opening and closing damper)
2. All-round argon soldering, high-temperature silicone breaking, SUS304# stainless steel electric heating producer, to prevent fine dust generated by the machine itself;
3. Imported SUS304# Japanese 800 2mm thick mirror stainless steel plate, and cleaned by alkaline soda to remove oil stains
PARTICLE is produced when no baking is required;
4. After the plane level is supplied from the back to the front, the air is supplied to the front door (special air duct design) through the H.E.P.A Filter 20″×20″ device imported from the United States, with a filtration efficiency of 99.99%, Class 100, exhaust port: 3″φ (with automatic opening and closing damper)
2. Implement and meet standards
1. GB/T11158-1989 Technical conditions of high-temperature test chamber
2. GB2423.2-1989 Test B
2. GB2423.2-1989 Test B
3. Uses:
Dust-free industrial ovens are suitable for electronic liquid crystal display, LCD, CMOS, IS, medicine, laboratory and other production and scientific research departments.
Dust-free industrial ovens can also be used for drying, heat treatment, aging and other high-temperature tests of non-volatile and non-flammable and explosive materials.
Dust-free industrial ovens can also be used for drying, heat treatment, aging and other high-temperature tests of non-volatile and non-flammable and explosive materials.
4. Product technical parameters

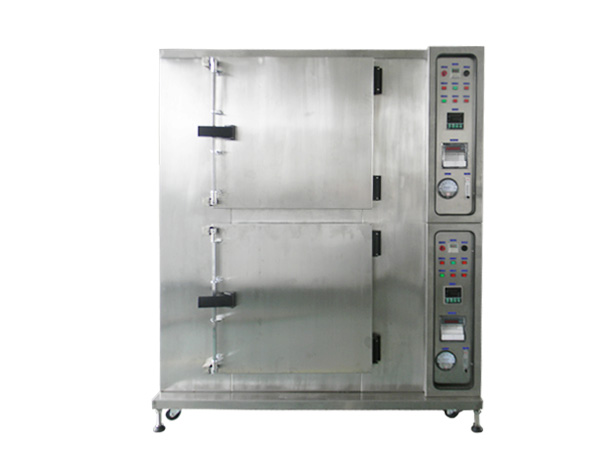

1. Name and model: Dust-free oven HSCOL-2D
2. Main technical indicators:
2.1 Dust-free level: Class 100;
2.2 Temperature range: 60~ +300°C;
2.3 Temperature uniformity: 200°C±3°C, 300°C±4°C;
2.4 Temperature fluctuation: ±0.5°C (no load)
2.5 Temperature control accuracy: ±0.1°C;
2.6 The oven shelf is in the form of moving. (2 box)
2.7 Power supply: 380v, 50Hz, 12Kw
2.2 Temperature range: 60~ +300°C;
2.3 Temperature uniformity: 200°C±3°C, 300°C±4°C;
2.4 Temperature fluctuation: ±0.5°C (no load)
2.5 Temperature control accuracy: ±0.1°C;
2.6 The oven shelf is in the form of moving. (2 box)
2.7 Power supply: 380v, 50Hz, 12Kw
3. Box structure:
3.1 The oven is assembled by the box part, electrical control cabinet, electric heating and air duct system, with reasonable structure and beautiful appearance.
3.2 Argon welding around the whole area, high-temperature resistant silicone tightening, SUS304# stainless steel electric heat generator, to prevent the machine itself from generating fine dust;
3.3 Box material: The outer box is made of SS41# medium carbon steel plate after phosphate film salt treatment and two layers of anti-gloss surface coating paint, which can prevent fine dust;
3.4 Liner material: Imported SUS304# Japanese 800 No. 2mm thick mirror stainless steel plate, and cleaned by alkaline soda to remove oil stains and avoid PARTICLE during baking;
3.5 Medium barrel material: Imported SUS304# Japanese 800 2mm thick mirror stainless steel plate, cleaned by alkaline soda, degreasing and argon welding sealing (anti-pollution).
3.2 Argon welding around the whole area, high-temperature resistant silicone tightening, SUS304# stainless steel electric heat generator, to prevent the machine itself from generating fine dust;
3.3 Box material: The outer box is made of SS41# medium carbon steel plate after phosphate film salt treatment and two layers of anti-gloss surface coating paint, which can prevent fine dust;
3.4 Liner material: Imported SUS304# Japanese 800 No. 2mm thick mirror stainless steel plate, and cleaned by alkaline soda to remove oil stains and avoid PARTICLE during baking;
3.5 Medium barrel material: Imported SUS304# Japanese 800 2mm thick mirror stainless steel plate, cleaned by alkaline soda, degreasing and argon welding sealing (anti-pollution).
4. Temperature control system
4.1 Adopt Japanese OMRON E5A temperature controller, controller LED digital display and setting, PID automatic calculation, film setting, accuracy ± 0.3% FS.;
4.2 Signal source: 0.5% of CA sensor rods imported from Japan ±.
4.3 Output controlled component: SSR contactless signal output.
4.2 Signal source: 0.5% of CA sensor rods imported from Japan ±.
4.3 Output controlled component: SSR contactless signal output.
5. Perfect safety protection measures:
Leakage circuit breaker,
Control line fuse device,
Over-temperature protection device,
Electric heat overcurrent protection device,
motor overcurrent protection,
Abnormal buzzer warning on the machine
Reverse preventer,
Facade safety switch
Control line fuse device,
Over-temperature protection device,
Electric heat overcurrent protection device,
motor overcurrent protection,
Abnormal buzzer warning on the machine
Reverse preventer,
Facade safety switch
6. Optional equipment:
6.1 Programmable thermostat
6.2 Six-point temperature recorder
6.3 Three-color indicator light
6.4 Baking rack
6.2 Six-point temperature recorder
6.3 Three-color indicator light
6.4 Baking rack

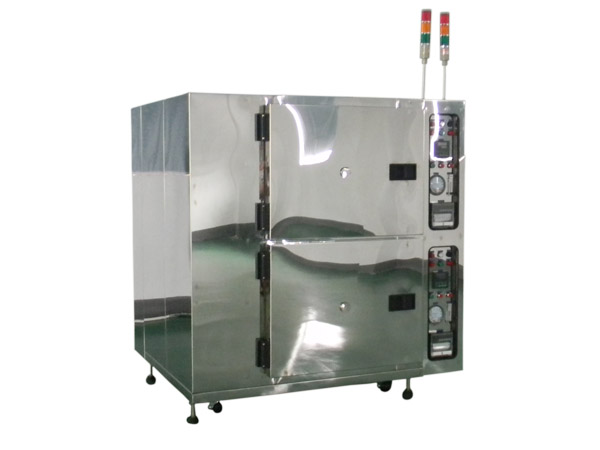

Practical example:
