Industry-specific clean oven\oven HSPHH
Performance characteristics:
◆ All-round argon welding, high-temperature resistant silicone tightening, SUS304# stainless steel electric heat generator, to prevent the machine itself from generating fine dust;
◆High-efficiency gas filtration device, which can achieve the same cleanliness level as the workplace;
◆High-efficiency gas filtration device, which can achieve the same cleanliness level as the workplace;
Technical parameters:
1. Air supply method: forced air supply cycle.
2. Temperature range: RT+10°C~250°C.
3. Temperature fluctuation: <±0.5°C.
4. Uniform temperature: ±1.5%.
According to the measurement specification: measure the SENSOR placement point, 1/5 of the size of the inner box wall.
5. Temperature control device: Fujifilm P.I.D intelligent temperature control instrument, LED digital display and setting, P.I.D automatic calculation, time timing.
Temperature control output: SSR output, Omron relay, solid state relay.
Temperature measurement device: 1 PT100 platinum resistance temperature sensing device, accurate temperature measurement.
Timing device: HS48S-99.99 timing instrument.
Gas control device: Efficiently filter particles in the gas, the gas can reach class1000#/class10000#.
6. Inner chamber material: SUS304# non-magnetic mirror stainless steel; The outer box is made of SS41# medium carbon steel plate treated with phosphate film salt and coated with two layers of anti-gloss surface paint to prevent fine dust (PARTICLE).
7. Insulation material: aluminum silicate.
8. Characteristic composite SUS304# stainless steel electric heat generator.
9. Protection device: over-temperature protector, motor overload protector, buzzer, fault indicator, fuseless switch.
2. Temperature range: RT+10°C~250°C.
3. Temperature fluctuation: <±0.5°C.
4. Uniform temperature: ±1.5%.
According to the measurement specification: measure the SENSOR placement point, 1/5 of the size of the inner box wall.
5. Temperature control device: Fujifilm P.I.D intelligent temperature control instrument, LED digital display and setting, P.I.D automatic calculation, time timing.
Temperature control output: SSR output, Omron relay, solid state relay.
Temperature measurement device: 1 PT100 platinum resistance temperature sensing device, accurate temperature measurement.
Timing device: HS48S-99.99 timing instrument.
Gas control device: Efficiently filter particles in the gas, the gas can reach class1000#/class10000#.
6. Inner chamber material: SUS304# non-magnetic mirror stainless steel; The outer box is made of SS41# medium carbon steel plate treated with phosphate film salt and coated with two layers of anti-gloss surface paint to prevent fine dust (PARTICLE).
7. Insulation material: aluminum silicate.
8. Characteristic composite SUS304# stainless steel electric heat generator.
9. Protection device: over-temperature protector, motor overload protector, buzzer, fault indicator, fuseless switch.
Images:

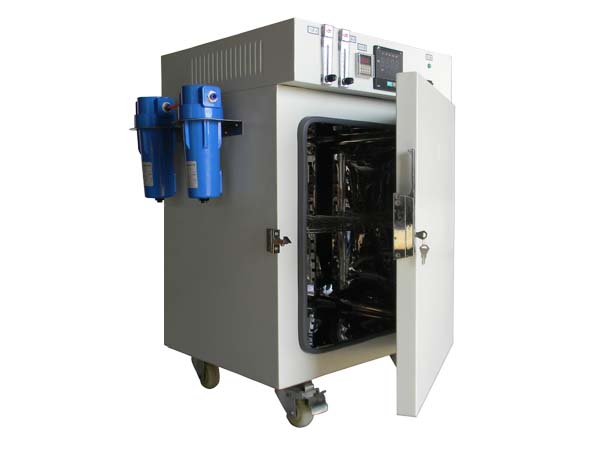

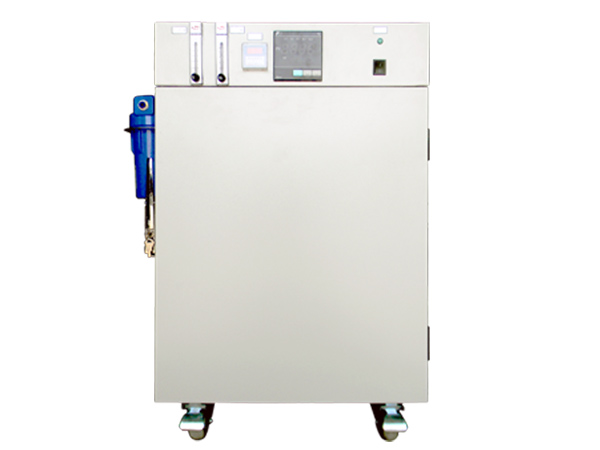

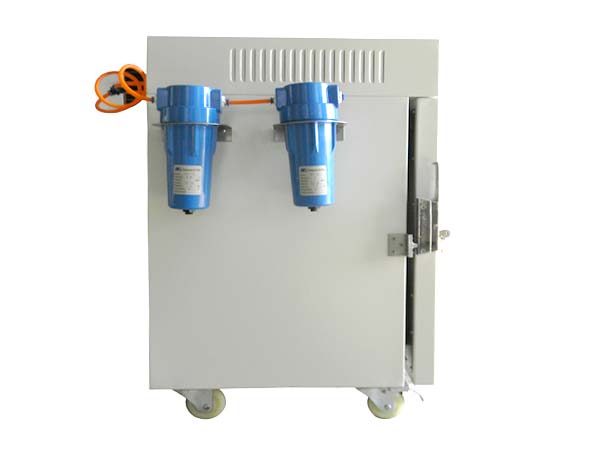

The above are small and medium-sized equipment, and the general delivery time is 7-10 working days

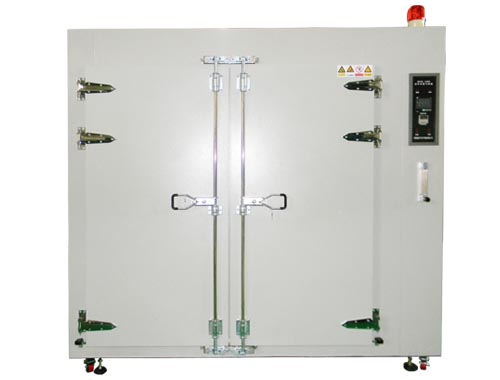

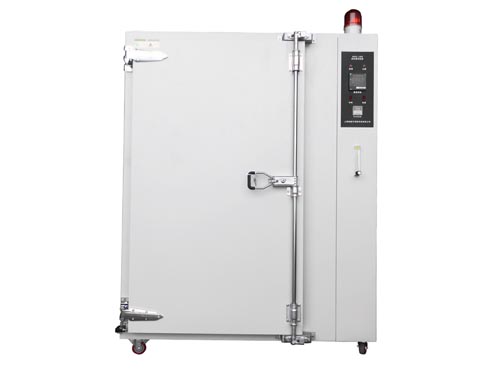

The above is a large equipment, and the general delivery time is 25 working days

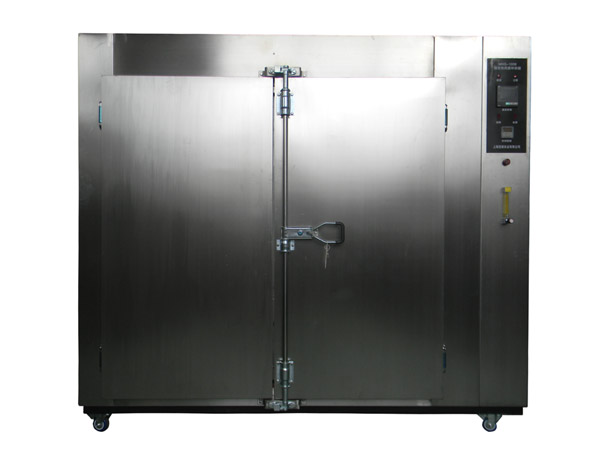

Large customized stainless steel interior and exterior
