Product Details:

Adhere to professional integrity, create customer value, and strive for industry excellence.

Specialized High Vacuum Mixer with Variable Frequency Drive

It is mainly used to stir the paste slurry, and vacuum defoaming is carried out at the same time, so that the finished product of pouring molding is dense and bubble-free, the surface is delicate and smooth, and high-quality products can be produced through grouting.

Vacuum Mixer
1. Product name and model of vacuum mixer:
1.1 Product name: vacuum mixer
1.2 Product model: HSVD-20S
2. Main technical indicators of vacuum mixer:
2.1 Vacuum degree<-0.095MPa
2.2 Stirring volume: with 2 20L SUS buckets
Guarantee the size of the barrel Diameter: 320mm high 300
3. Vacuum mixer box structure:
3.1. Exterior wall material: The shell is made of steel plate after pickling and phosphating.
3.2. Liner material: 3mm thick SUS304, using special reinforcement methods to ensure the strength of the structure, durable, and good vacuum effect.
3.3. Mixer motor: South Korea Nianbo geared motor, frequency converter;
4. Vacuum mixer electrical system:
4.1. Vacuum gauge
4.2. Time relay (stirring time, vacuum time)
4.3. Inverter, stirring speed (the inverter is installed on the panel, easy to adjust)
4.4. Shanghai Tan’s vacuum oil pump 2XZ series bipolar oil pump, low vibration, low noise, high vacuum.

Optional features:
Temperature Control System:

Adopting the Japanese “Fuji” temperature controller, the product adopts the new PID fuzzy logic processing controller, which quickly reaches the set value and runs more accurately and stably. LCD display, clear and intuitive value. Over-temperature alarm and automatically cut off the heating power supply. It can simplify the complex test process and truly realize automatic control and operation
Temperature control range: room temperature +10-120 degrees

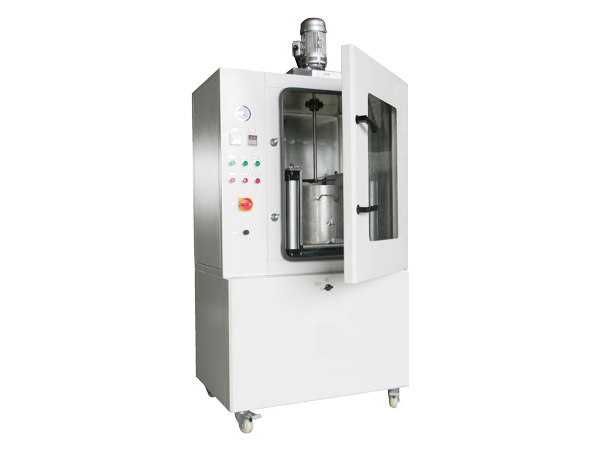

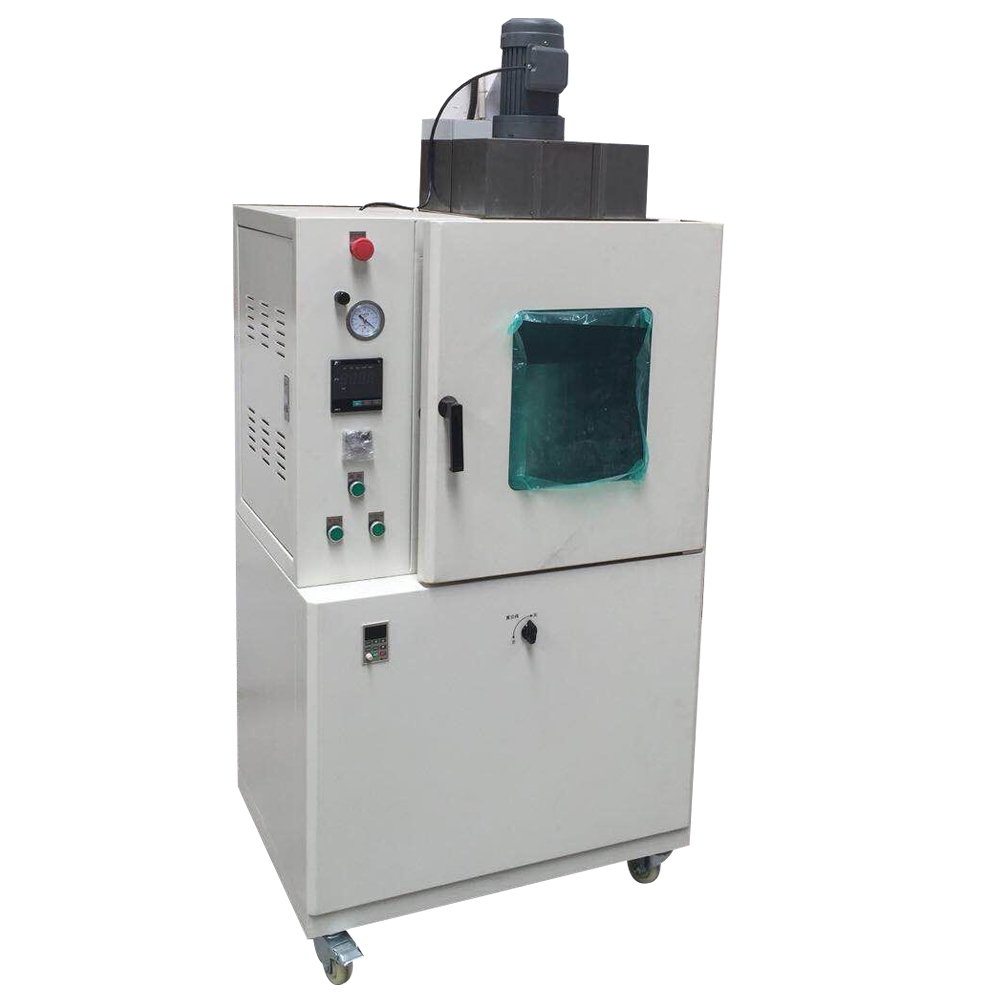

Photos:
